| 起源の場所: | 中国 |
| ブランド名: | BRITEC |
| 証明: | CE |
| モデル番号: | BR-25M 3P |
| 最小注文数量: | 100つの部分/部分 |
|---|---|
| パッケージの詳細: | 輸出パッキング |
| 受渡し時間: | 支払の後の15日に出荷される |
| 支払条件: | L/C、D/A、T/T、ウェスタン・ユニオン |
| 供給の能力: | 50000部分/部分月 |
| UC: | 150V/275V/320V | の: | 25KA |
|---|---|---|---|
| 型式番号: | BR-25M 3P | OEM: | はい |
| 項目名前: | サージ・プロテクター | 原産地: | 浙江、中国（本土） |
| ブランド名: | BRITEC | 標準: | IEC61643-1 |
| Iimp: | 25KA | 取付けのため: | 35mmの喧騒の柵 |
| ハイライト: | 3P 25KA Type 1 Surge Protector,Waveform Type 1 Surge Protector,320V Type 1 Surge Protector Device |
||

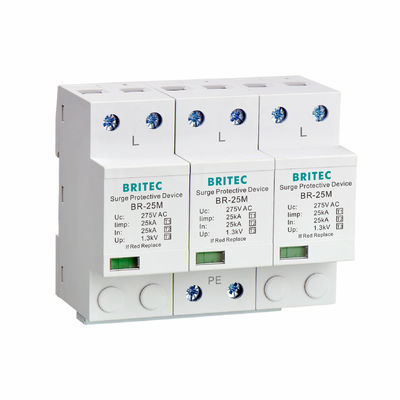

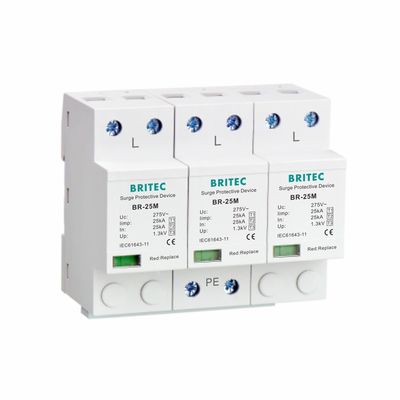

25KA Type 1 Surge Protector Features:
25KA Type 1 Surge Protector Technology characteristic:
| BR-25M 3P | |
| No. of poles | 3P |
| Power supply system | TN-C |
| SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
| SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
| Max. continuous operating a.c. voltage Uc | 150V/275V/320V |
| Voltage protection level Up | ≤1.3kV |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Maximum discharge current (8/20us) Imax | 100kA |
| Status indication | Mechanical flag |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃—80℃ |
| Relative humidity | On condition that room temperature 30% to 90% |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
| For mounting on | 35mm Din rail |
| Max. backup fuse | 315A gG |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| Note | Other maximum continuous working voltage Uc can be customized |
Dimension:
25KA Type 1 Surge Protector Application:
• Prevents lightning overvoltage and transient overcurrent from intruding into the power supply line from disrupting the normal operation of the power supply system and electrical equipment.
• It is applicable to lightning protection for the power system in areas with high lightning risk (LPZ0B or the interface between LPZ0B and LPZ1).
• Suitable for three-phase TN-C power supply system with AC of 50 to 60Hz
• Generally installed in the building into the low-voltage main distribution cabinet or low-voltage main switch.
Workshop:
Laboratory:
Certificate:
Shipping:
FAQ:
Q1. What's the payment term?
A1. We accept TT, 30% deposit and 70% balance before shipping.
Q2. Would you accept to use our logo?
A2. If you have good quantity, it absolute no problem to do OEM.
Q3. Do you accept customized order?
A3. Yes, we do.
