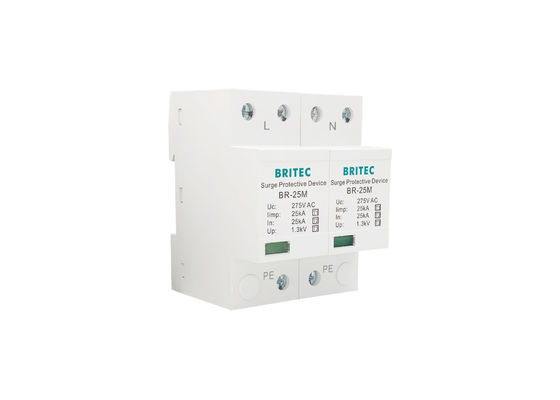

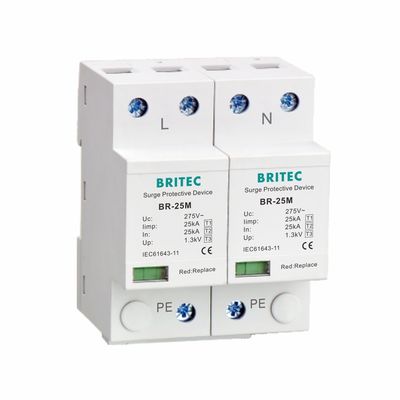

起源の場所: | 中国 |
ブランド名: | BRITEC |
モデル番号: | BR-25M 2P |
最小注文数量: | 100つの部分/部分 |
---|---|
パッケージの詳細: | 輸出パッキング |
受渡し時間: | 支払の後の15日に出荷される |
支払条件: | L/C、D/A、T/T、ウェスタン・ユニオン |
供給の能力: | 50000部分/部分月 |
製造業者: | 温州市Britec電気Co.、株式会社。 | 部分名: | タイプ1のサージ・プロテクター |
---|---|---|---|
原産地: | 浙江、中国(本土) | ブランド名: | BRITEC |
安全基準: | IEC61643-1 | UC: | 275V |
Iimp: | 25KA | 取付けのため: | 35mmの喧騒の柵 |
ポーランド人いいえ。: | 2P | 適用: | 単一フェーズ |
ハイライト: | Type 1 Surge Protection Device 275V,Single Phase Type1 Surge Protector,25kA T1 Type 1 Surge Protector |
25kA Type 1 Surge Protector Features:
25kA Type 1 Surge Protector Technology characteristic:
BR-25M 2P | |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Test standard | IEC61643-1 |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
25kA Type 1 Surge Protector Application:
Company Information:
Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.
Certification:
Product process:
Shipping:
FAQ:
Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.
Q2: What is the warranty for the surge protection?
A: Two years.
Q3: What is the payment terms?
A: T/T, Paypal, etc.
Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.
Q5: Is it OK to print my logo on lightning arrester?
A: Yes. Please inform us formally before our production.
