起源の場所: | 中国 |
ブランド名: | BRITEC |
モデル番号: | BR-25M 4P |
最小注文数量: | 100つの部分/部分 |
---|---|
パッケージの詳細: | 輸出パッキング |
受渡し時間: | 支払の後の15日に出荷される |
支払条件: | L/C、D/A、T/T、ウェスタン・ユニオン |
供給の能力: | 50000部分/部分月 |
ブランド: | BRITEC | モデル: | BR-25M 4P |
---|---|---|---|
項目名前: | サージ保護装置 | クラス標準: | タイプ1+2+3 |
UC: | 275V | Iimp: | 25KA |
ポーランド人: | 4P | 保護クラス: | IP20 |
実用温度: | -40℃~80℃ | 材料: | 熱可塑性UL94-V0 |
ハイライト: | 25KA T1 Surge Protector,Type1 4P Surge Protector,BRITEC Type 1 Surge Protection Device |

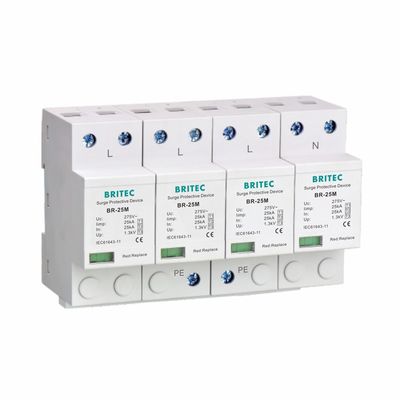

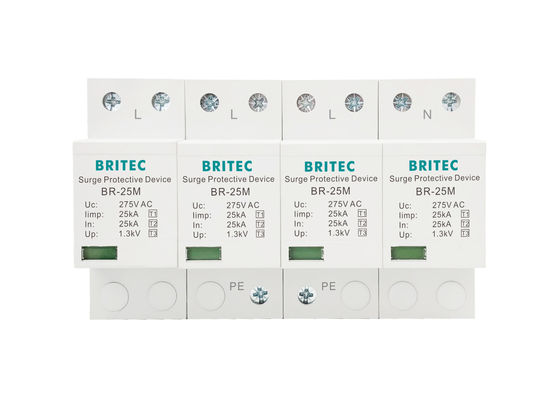

T1 Surge Protector 25KA 4P Surge Protection Device Presentation:
T1 Surge Protector 25KA 4P Surge Protection Device Technology characteristic:
BR-25M 4P | |
SPD classification according to EN61643-11 with 5M | Type 1 + Type 2 + Type 3 |
SPD classification according to IEC61643-11 with 5M | Class I + Class II + Class III |
Rated operating voltage Un | 400V |
Max. continuous operating a.c. voltage Uc | 275V |
Voltage protection level Up | ≤1.3kV |
Lightning impulse current (10/350us) Iimp | 25kA |
Nominal discharge current (8/20us) In | 25kA |
Maximum discharge current (8/20us) Imax | 100kA |
Response time tA | ≤25ns |
Cross-section area (Min.) | 4mm2 |
Cross-section area (Max.) | 35mm2 |
Max. backup fuse | 315A gG |
Operating temperature range Tu | -40℃—80℃ |
Relative humudity(25°C) | ≤95% |
For mounting on | 35mm Din rail |
Enclosure material | Thermoplastic UL94-V0 |
Dimension:
About us:
Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.
Q1: Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity.
Q2: Are your surge protector supported for customization?
A: Yes, of course.
Q3: How can you ensure your After-sales Service?
A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.
Q4: Are you a trading company or a manufacturer?
A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
